使用windows10系统的时候，总是会遇到这样那样的故障，比如近期有windows10系统网友到本站反映说，他在使用windows10系统的过程中，突然跳出一个没有效的产品密钥的窗口，并提示0x80070424错误代码，指定的服务未安装，这是如何回事呢，针对这个故障，接下来小编就给我们分享一下win10系统跳出没有效的产品密钥0x80070424错误代码的具体处理办法吧。

原因分析：这个故障的大概性是Software Protection服务丢失，即在services中没有法找到该服务。

处理办法：

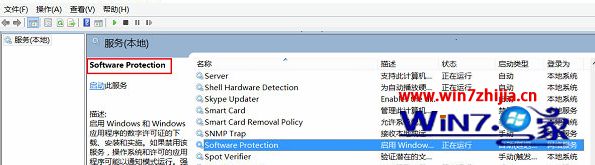

1、按”win+R”组合键，调出运行框，写入: services.msc 并回车，查找Software Protection服务；

2、如果找不到Software Protection服务，那么大家可以参考如下方案，通过导入Software Protection键值，重建Software Protection服务，来处理该故障；
3、新建一个记事本文件，将以下文字复制粘贴到记事本中，以“SP.reg”命名并保存于桌面；
windows Registry Editor Version 5.00
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\sppsvc]
"StartProtected"=dword:00000001
"DisplayName"="@%SystemRoot%\\system32\\sppsvc.exe,-101"
"ErrorControl"=dword:00000001
"ImagePath"=hex(2):25,00,53,00,79,00,73,00,74,00,65,00,6d,00,52,00,6f,00,6f,00,\
74,00,25,00,5c,00,73,00,79,00,73,00,74,00,65,00,6d,00,33,00,32,00,5c,00,73,\
00,70,00,70,00,73,00,76,00,63,00,2e,00,65,00,78,00,65,00,00,00
"Start"=dword:00000002
"Type"=dword:00000010
"Description"="@%SystemRoot%\\system32\\sppsvc.exe,-100"
"DependOnService"=hex(7):52,00,70,00,63,00,53,00,73,00,00,00,00,00
"ObjectName"="NT AUTHORITY\\NetworkService"
"ServiceSidType"=dword:00000001
"RequiredPrivileges"=hex(7):53,00,65,00,41,00,75,00,64,00,69,00,74,00,50,00,72,\
00,69,00,76,00,69,00,6c,00,65,00,67,00,65,00,00,00,53,00,65,00,43,00,68,00,\
61,00,6e,00,67,00,65,00,4e,00,6f,00,74,00,69,00,66,00,79,00,50,00,72,00,69,\
00,76,00,69,00,6c,00,65,00,67,00,65,00,00,00,53,00,65,00,43,00,72,00,65,00,\
61,00,74,00,65,00,47,00,6c,00,6f,00,62,00,61,00,6c,00,50,00,72,00,69,00,76,\
00,69,00,6c,00,65,00,67,00,65,00,00,00,53,00,65,00,49,00,6d,00,70,00,65,00,\
72,00,73,00,6f,00,6e,00,61,00,74,00,65,00,50,00,72,00,69,00,76,00,69,00,6c,\
00,65,00,67,00,65,00,00,00,00,00
"DelayedAutoStart"=dword:00000001
"FailureActions"=hex:80,51,01,00,00,00,00,00,00,00,00,00,03,00,00,00,14,00,00,\
00,01,00,00,00,c0,d4,01,00,01,00,00,00,e0,93,04,00,00,00,00,00,00,00,00,00
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\sppsvc\Security]
"Security"=hex:01,00,14,80,a0,00,00,00,ac,00,00,00,14,00,00,00,30,00,00,00,02,\
00,1c,00,01,00,00,00,02,80,14,00,ff,01,0f,00,01,01,00,00,00,00,00,01,00,00,\
00,00,02,00,70,00,05,00,00,00,00,00,14,00,ff,01,02,00,01,01,00,00,00,00,00,\
05,12,00,00,00,00,00,18,00,fd,01,0f,00,01,02,00,00,00,00,00,05,20,00,00,00,\
20,02,00,00,00,00,14,00,9d,01,02,00,01,01,00,00,00,00,00,05,04,00,00,00,00,\
00,14,00,9d,01,02,00,01,01,00,00,00,00,00,05,06,00,00,00,00,00,14,00,14,00,\
00,00,01,01,00,00,00,00,00,05,0b,00,00,00,01,01,00,00,00,00,00,05,12,00,00,\
00,01,01,00,00,00,00,00,05,12,00,00,00
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\sppsvc\TriggerInfo]
[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\sppsvc\TriggerInfo\0]
"Type"=dword:00000014
"Action"=dword:00000001
"GUID"=hex:da,8a,52,f5,5f,be,14,4f,8a,ef,a9,5d,e7,28,11,61
4、请您双击“SP.reg”，当系统提示您是不确认导入注册表时，请打开“是”。以后会有提示说明已经成功导入注册表。

5、重启后，再次进入”服务”控制面板查看，可以找到Software Protection服务，右击并选中启用。
6、Software Protection服务是一个很重要的服务，网友检测更新报错0x80070424，也有大概是由于该服务丢失导致的没有法正常更新，可以通过上述办法恢复该服务来处理故障。

    通过上面的办法就可以借助我们处理win10系统跳出没有效的产品密钥0x80070424错误代码这个故障了，有遇到这样故障的网友们可以参照上面的办法步骤来处理就可以了。
